Gate Drive transformers
- Casing + resin: UL94V0 Complies with the Fire – Smoke standard EN45545.
- Laser marking available
- Tailor-made product
GateDrive transformers
Power transformers
High frequency
Functions

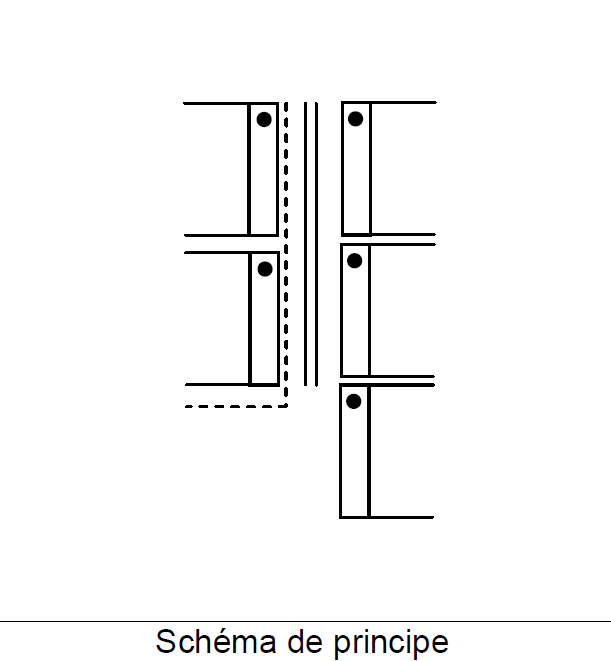

The Gate Drive Transformer transmits pulses for driving high-frequency IGBTs.
Technical characteristics
- Frequency : up to 100 kHz
- Transformation ratio : as per your specifications
- No-load power consumption : low
- Power : up to 15 VA
- Stray capacitance P/S : < 20 pF
- Leakage inductance : < 10 μH
- Dielectric resistance P/S : up to 10 kV
- Partial discharge extinction (< 10 pC) up to 6 kV
