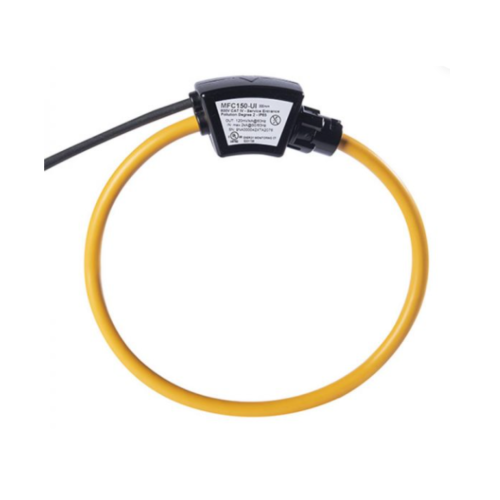

Rogowski Coil MFC150UL (8 mm cross section) is a flexible current sensor based on Rogowski principle. MFC150UL coils are available in different sizes and can be supplied according to customer’s design, therefore they can be used in all those applications, in which traditional transformers are not fitting due to size and/or weight.
Rogowski CoilMFC150UL (8mm)
Measurement
Rogowski coil

Technical data (PDF)Add to my list
Functions
Son principe est simple : une bobine à noyau d'air est placée autour du conducteur de manière toroïdale ; le champ magnétique produit par le courant induit une tension dans la bobine. La tension de sortie est proportionnelle à la vitesse de variation du courant. Cette tension est intégrée, produisant ainsi une tension de sortie proportionnelle au courant. La tension de sortie est proportionnelle à la variation du courant et, après un intégrateur à amplificateur opérationnel, proportionnelle à la valeur du courant lui-même.
Key strengths
- Four available models: for indoor or outdoor use, with or without integrator
- Suitable to measure currents from mA to several kA
- High linearity
- Very useful with large size or awkward shaped conductors or in places with limited access
- No danger from open-circuited secondary
- Not damaged by overloads
- Non-intrusive, no power drawn from the main
- Thanks to its light weight, it can be changed on the measured conductor
- Totally shielded
- UL 2808 certified
